Karakteristik
• Material: 304 or 316 SS or brass.
• Thread size: 9/16" or 1/4"
•Working pressure 335bar.
• Precisely machined swirl cores structureto produce very fine mist droplets.
• Compact size, wide variety of flowrates.
•Widely used for oil burning, humidifying.fogcannon, snow maker, etc.
• This series of nozzles does not need air supply.
• The system is simple; the spray mist is fine, full atomization, energy saving.
• Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.

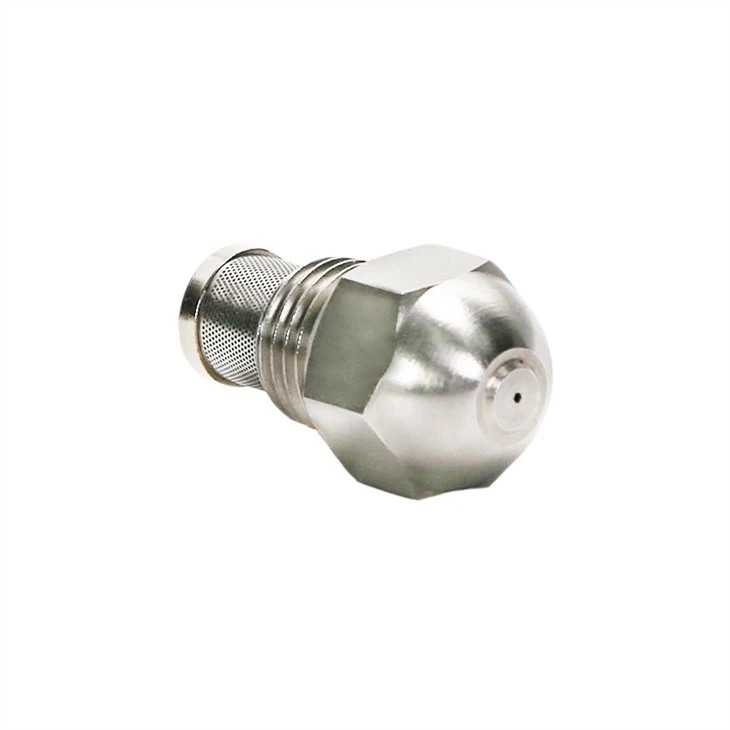

 Low Presyon Atomize Nèj Maker Bwouya Misting Buses |  Atomize Nèj Maker Bwouya Misting Buses |
Aplikasyon Jeneral
• Snow making
• Oil Burning
• Humidification
• Fog cannon
• Liquid spraying
• Flue gas evaporating cooling
• Artificial fog
Deskripsyon
| Modèl | RY |
Inlet koneksyon | 9/16"; 1/4" |
orifis dia. | 1.8mm/1.7mm/1.6mm/1.5mm/1.4mm/1.3mm/1.2mm/1.1mm/1mm/0.9mm/0.8mm /{{0}}.7mm/0.6mm/0.5mm/0.4mm/0.3mm |
Presyon dlo | 25bar/20bar/15bar/10bar/7bar/5bar/3bar/2bar/1.5bar |
Flite ang | 80 degre / 70 degre / 60 degre / 50 degre / 45 degre / 30 degre |
Paramèt
| Gwosè fil | Orifis Dia. | Gwosè ti gout | Gwosè filtre | Pousantaj koule (L/min) | Ang espre (O) | |||||||||
mm | (μm) | (may) | 1.5bar | 2ba | 3ba | 5ba | 7ba | 10ba | 15ba | 20ba | 25ba | 3ba | 10ba | |
1/4'' | 0.3 | 50 | 120 | — | — | 0.05 | 0.06 | 0.07 | 0.08 | 0.10 | 0.12 | 0.14 | 30 | 45 |
0.4 | 60 | 120 | — | — | 0.06 | 0.08 | 0.09 | 0.11 | 0.13 | 0.15 | 0.16 | 30 | 45 | |
0.5 | 70 | 100 | — | — | 0.08 | 0.10 | 0.12 | 0.14 | 0.17 | 0.20 | 0.22 | 45 | 60 | |
0.6 | 70 | 100 | — | 0.10 | 0.13 | 0.16 | 0.20 | 0.25 | 0.30 | 0.35 | 0.40 | 50 | 70 | |
0.7 | 80 | 100 | 0.14 | 0.16 | 0.20 | 0.26 | 0.30 | 0.35 | 0.43 | 0.49 | 0.55 | 50 | 70 | |
0.8 | 80 | 100 | 0.22 | 0.25 | 0.30 | 0.38 | 0.45 | 0.53 | 0.66 | 0.74 | 0.82 | 60 | 70 | |
0.9 | 90 | 50 | 0.29 | 0.33 | 0.40 | 0.50 | 0.60 | 0.71 | 0.86 | 0.99 | 1.10 | 60 | 70 | |
1.0 | 110 | 50 | 0.36 | 0.41 | 0.50 | 0.64 | 0.75 | 0.89 | 1.08 | 1.23 | 1.37 | 60 | 80 | |
1.1 | 120 | 50 | 0.43 | 0.49 | 0.60 | 0.77 | 0.90 | 1.06 | 1.29 | 1.48 | 1.65 | 60 | 80 | |
1.2 | 130 | 50 | 0.58 | 0.66 | 0.80 | 1.02 | 1.20 | 1.42 | 1.72 | 1.97 | 2.20 | 60 | 80 | |
1.3 | 140 | 50 | 0.72 | 0.82 | 1.00 | 1.28 | 1.50 | 1.77 | 2.15 | 2.47 | 2.74 | 60 | 80 | |
1.4 | 140 | 50 | 0.86 | 0.99 | 1.20 | 1.53 | 1.80 | 2.13 | 2.58 | 2.96 | 3.29 | 80 | 80 | |
1.5 | 150 | 50 | 1.01 | 1.15 | 1.40 | 1.79 | 2.10 | 2.48 | 3.01 | 3.46 | 3.84 | 80 | 80 | |
1.6 | 180 | 50 | 1.15 | 1.32 | 1.60 | 2.04 | 2.40 | 2.84 | 3.44 | 3.95 | 4.39 | 80 | 80 | |
1.7 | 210 | 50 | 1.29 | 1.48 | 1.80 | 2.20 | 2.69 | 3.19 | 3.87 | 4.44 | 4.94 | 80 | 80 | |
1.8 | 230 | 50 | 1.45 | 1.70 | 2.08 | 2.40 | 3.02 | 3.65 | 4.25 | 4.98 | 5.50 | 80 | 80 | |
Enfòmasyon sou lòd
RY | 1/4" | SS | 0.3 |
↓ | ↓ | ↓ | ↓ |
Kalite bouch | Gwosè fil | Materyèl | orifis dia. |
