Inondasyon Jet Wide Angle Flat Fan Flite Buses pwodwi yon gwo ang, devye kalite plat fanatik espre modèl Fil gwosè ranje soti nan 1/8 '' pou 2 '' ak BSPT oswa NPT fil kalite ang espre ki estab ak inifòm, distribisyon parabolik nan likid.

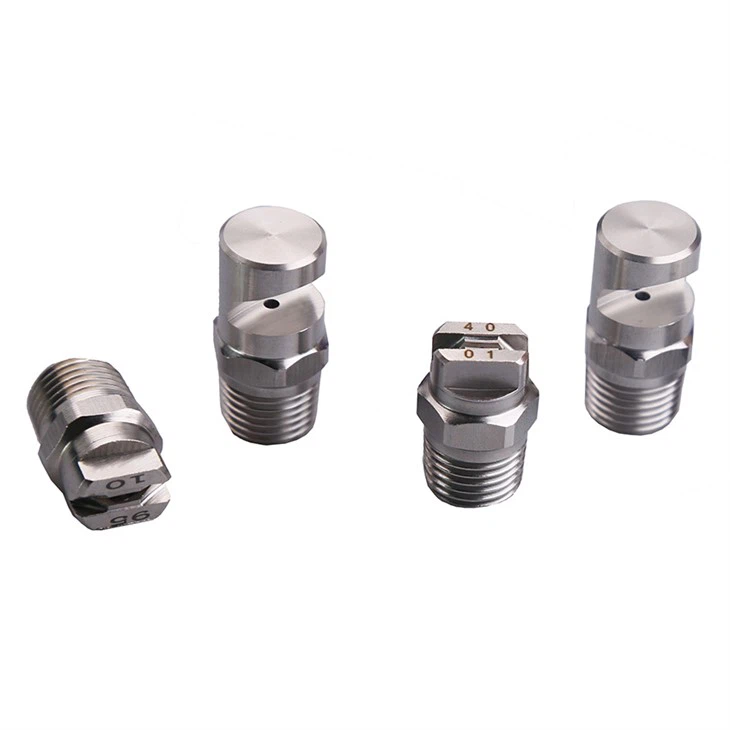

Flood Jet Wide Angle Flat Fan Spray Nozzles

Inondasyon Jet Wide Angle Flat Fan Flite Buses

Paramèt

Kòd koule	Orifis Dia. (mm)	Pousantaj koule (L/min)									Flite Angle
		1 ( gal US )=3.785 L ; 1 (UK gal)=4.546 L
		0.2 bar	0.3 bar	0.5 bar	0.7 bar	1 bar	1.5 bar	2 bar	3 bar	4 bar	0.5 bar	1.5 bar	4 bar
0.25	0.41					0.11	0.14	0.16	0.2	0.23		83°	117°
0.5	0.61					0.23	0.28	0.32	0.39	0.46		89°	122°
0.75	0.71				0.29	0.34	0.42	0.48	0.59	0.68		106°	125°
1	0.84				0.38	0.46	0.56	0.64	0.79	0.91		109°	128°
1.5	1			0.48	0.57	0.68	0.84	0.97	1.2	1.4	73°	108°	125°
2	1.2			0.64	0.76	0.91	1.1	1.3	1.6	1.8	83°	113°	129°
2.5	1.3		0.62	0.81	0.95	1.1	1.4	1.6	2	2.3	98°	122°	133°
3	1.4		0.75	0.97	1.1	1.4	1.7	1.9	2.4	2.7	86°	112°	126°
4	1.7		1	1.3	1.5	1.8	2.2	2.6	3.2	3.6	97°	123°	132°
5	1.9	1	1.2	1.6	1.9	2.3	2.8	3.2	3.9	4.6	114°	128°	142°
7.5	2.3	1.5	1.9	2.4	2.9	3.4	4.2	4.8	5.9	6.8	101°	119°	134°
10	2.6	2	2.5	3.2	3.8	4.6	5.6	6.4	7.9	9.1	115°	133°	145°
12	2.9	2.4	3	3.9	4.6	5.5	6.7	7.7	9.5	10.9	128°	139°	153°
15	3.3	3.1	3.7	4.8	5.7	6.8	8.4	9.7	11.8	13.7	98°	113°	123°
18	3.6	3.7	4.5	5.8	6.9	8.2	10	11.6	14.2	16.4	106°	120°	131°
20	3.8	4.1	5	6.4	7.6	9.1	11.2	12.9	15.8	18.2	110°	122°	133°
22	4	4.5	5.5	7.1	8.4	10	12.3	14.2	17.4	20	113°	125°	136°
24	4.1	4.9	6	7.7	9.2	10.9	13.4	15.5	18.9	22	115°	131°	144°
27	4.4	5.5	6.7	8.7	10.3	12.3	15.1	17.4	21	25	119°	135°	148°
30	4.6	6.1	7.5	9.7	11.4	13.7	16.7	19.3	24	27	100°	110°	121°
35	5	7.1	8.7	11.3	13.3	16	19.5	23	28	32	105°	118°	128°
40	5.3	8.2	10	12.9	15.3	18.2	22	26	32	36	111°	126°	136°
45	5.6	9.2	11.2	14.5	17.2	21	25	29	36	41	115°	130°	140°
50	6	10.2	12.5	16.1	19.1	23	28	32	39	46	117°	131°	140°
60	6.5	12.2	15	19.3	23	27	33	39	47	55	120°	134°	142°
70	7.1	14.3	17.5	23	27	32	39	45	55	64	123°	137°	146°
80	7.5	16.3	20	26	31	36	45	52	63	73	127°	138°	149°
90	8	18.3	22	29	34	41	50	58	71	82	120°	133°	140°
100	8.4	20	25	32	38	46	56	64	79	91	123°	136°	145°
110	8.8	22	27	35	42	50	61	71	87	100	125°	138°	148°
120	9.3	24	30	39	46	55	67	77	95	109	129°	143°	150°
140	10.3	29	35	45	53	64	78	90	111	128	118°	127°	135°
160	11.1	33	40	52	61	73	89	103	126	146	121°	130°	137°
180	11.5	37	45	58	69	82	100	116	146	164	124°	133°	139°
210	12.3	43	52	68	80	96	117	135	166	191	128°	139°	145°
300	14.7	61	75	97	114	137	167	193	235	275	110°	128°	135°
450	17.9	92	112	145	172	205	2500	290	355	410	118°	132°	138°

Enfòmasyon sou lòd

K	1/4’’	–	SS	1222
↓	↓		↓	↓
Kalite bouch	konnektè Size		Materyèl	Kòd koule

Aplikasyon Jeneral:

1) Netwayaj ak lave pwosesis

2) mande jè dlo pwisan ak konsantre

3) Lave presyon

4) Kontwòl kim nan tank depo ak plant tretman dlo egou

Pati machin

Woule refwadisman

Difikilte pou pwodiksyon an nan bouch fanatik lajè-ang se asire ke ang la lajè ak distribisyon espre inifòm, tou de nan yo ki konsistan nan menm tan an.Sepandan, bouch espre XinHou ka asire ke ang la nan bouch fanatik K plat nou an se absoliman egzat. , espre a pa pral dispèse, ak vapè dlo a nan chak degre se eleman nan menm.

Si ou gen nenpòt dout sou seleksyon an ang oswa fòs enpak koule nan bouch fanatik lajè ang K, tanpri pa ezite konsilte nou. XinHou espre nozzleswill rekòmande bouch fanatik lajè-ang ki pi apwopriye pou pwojè ou a selon eksperyans pratik rich nou an.
